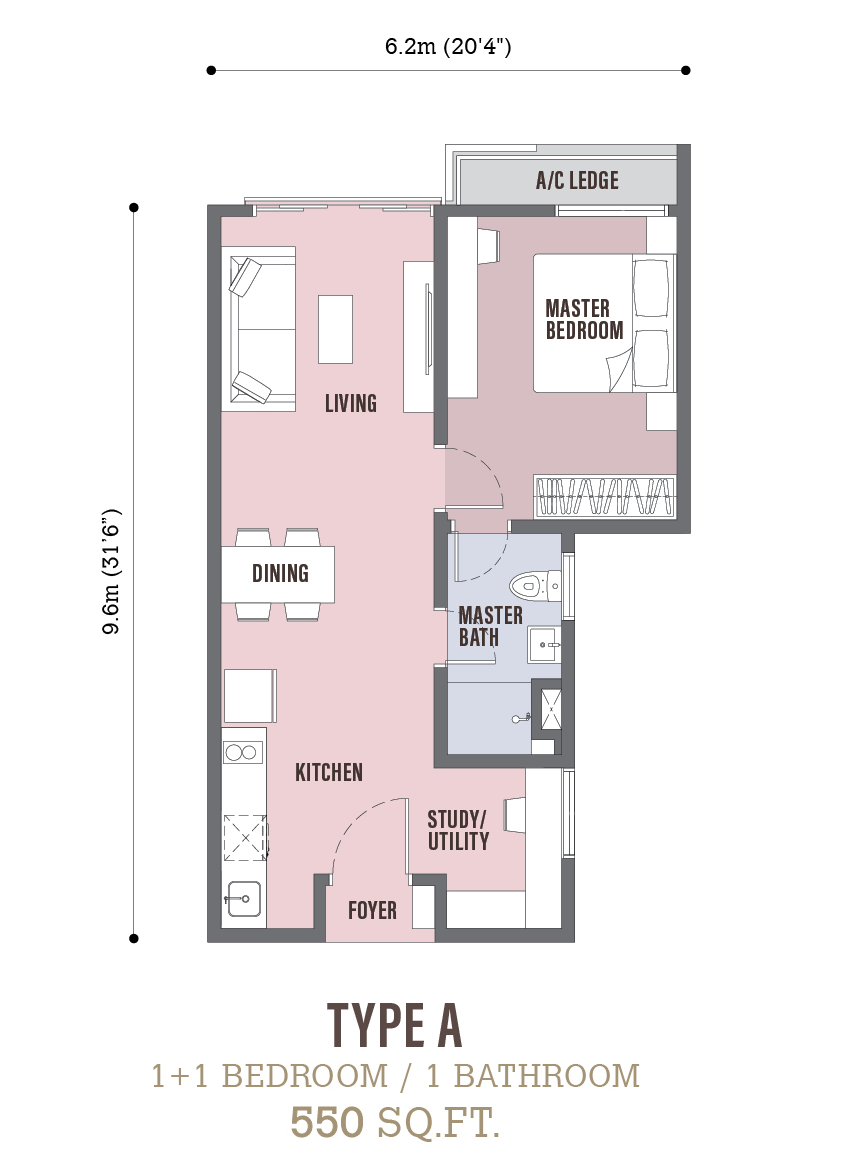

Type A
1+1 bedrooms, 1 bathroom · 550 sq ft
Living, Master bedroom, Dining, Master bath, Kitchen, Study/Utility, Foyer, A/C ledge
The Plan Table
Four of the developer's floor plans on one table, at the same scale. Start with Type C and Type D together: the same size, the rooms arranged differently.
Schematic, not a construction drawing
Floor plans are the developer's drawings, for reference only. The Sale and Purchase Agreement prevails. Room names, outlines and furniture are a schematic layer. The furniture is drawn to real size: a queen bed 153 × 203 cm, a six-seat dining table 180 × 90 cm, a three-seat sofa 210 × 90 cm.
Type C and Type D: the difference
The same
- Both are 920 sq ft, with 3 bedrooms, 2 bathrooms
- Both have a balcony, a yard and an A/C ledge
- Living and dining sit on the same side, and the kitchen is by the foyer
Different
Type C: the master bedroom and the second bedroom sit side by side at the top. The third bedroom is in the middle, next to the dining area, and the two bathrooms are side by side at the lower left.
Type D: the master bedroom runs across the top, with its bathroom beside it. The second and third bedrooms are below, and the second bathroom sits above the second bedroom, jutting out.
The rooms of Types A to D

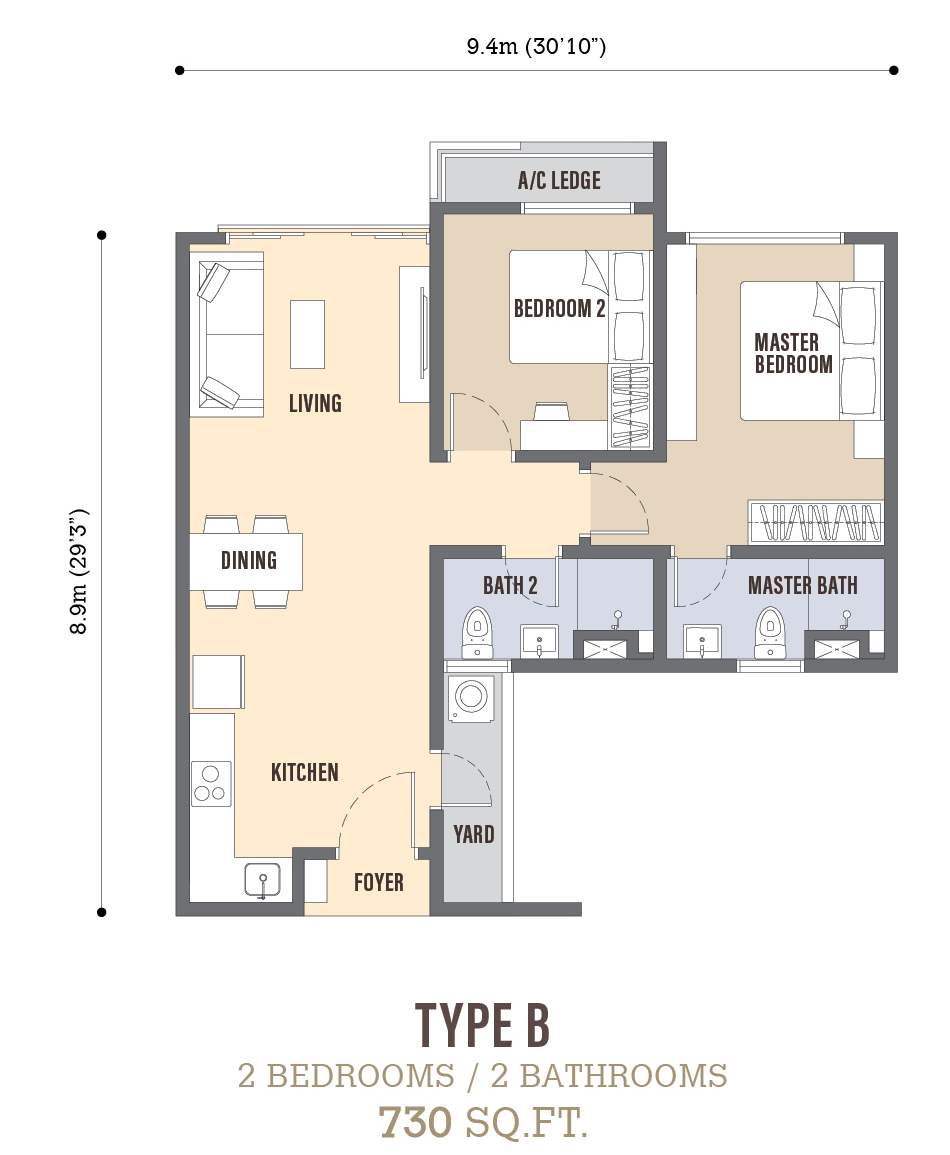

Type B
2 bedrooms, 2 bathrooms · 730 sq ft
Living, Bedroom 2, Master bedroom, Dining, Bath 2, Master bath, Kitchen, Yard, Foyer, A/C ledge

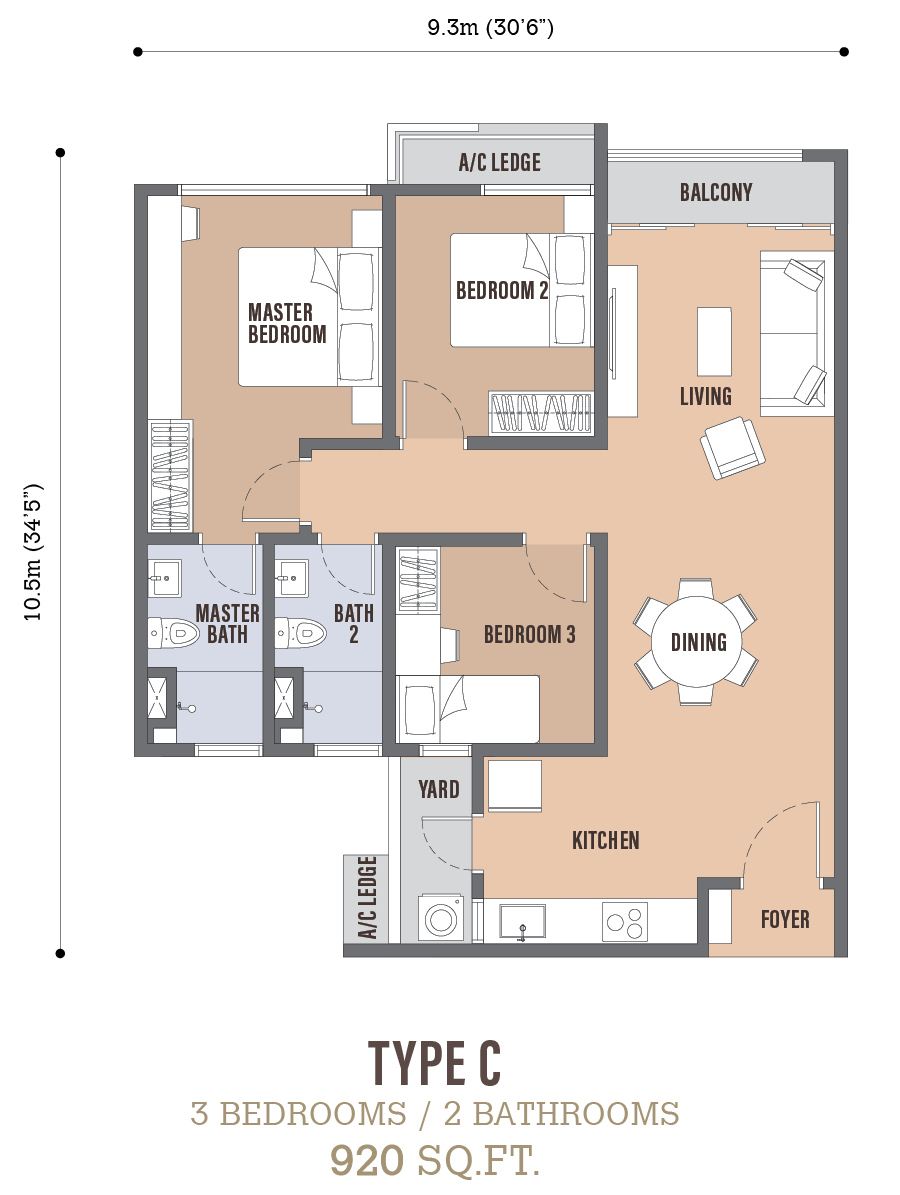

Type C
3 bedrooms, 2 bathrooms · 920 sq ft · With balcony
Master bedroom, Bedroom 2, Living, Master bath, Bath 2, Bedroom 3, Dining, Yard, Kitchen, Foyer, Balcony, A/C ledge

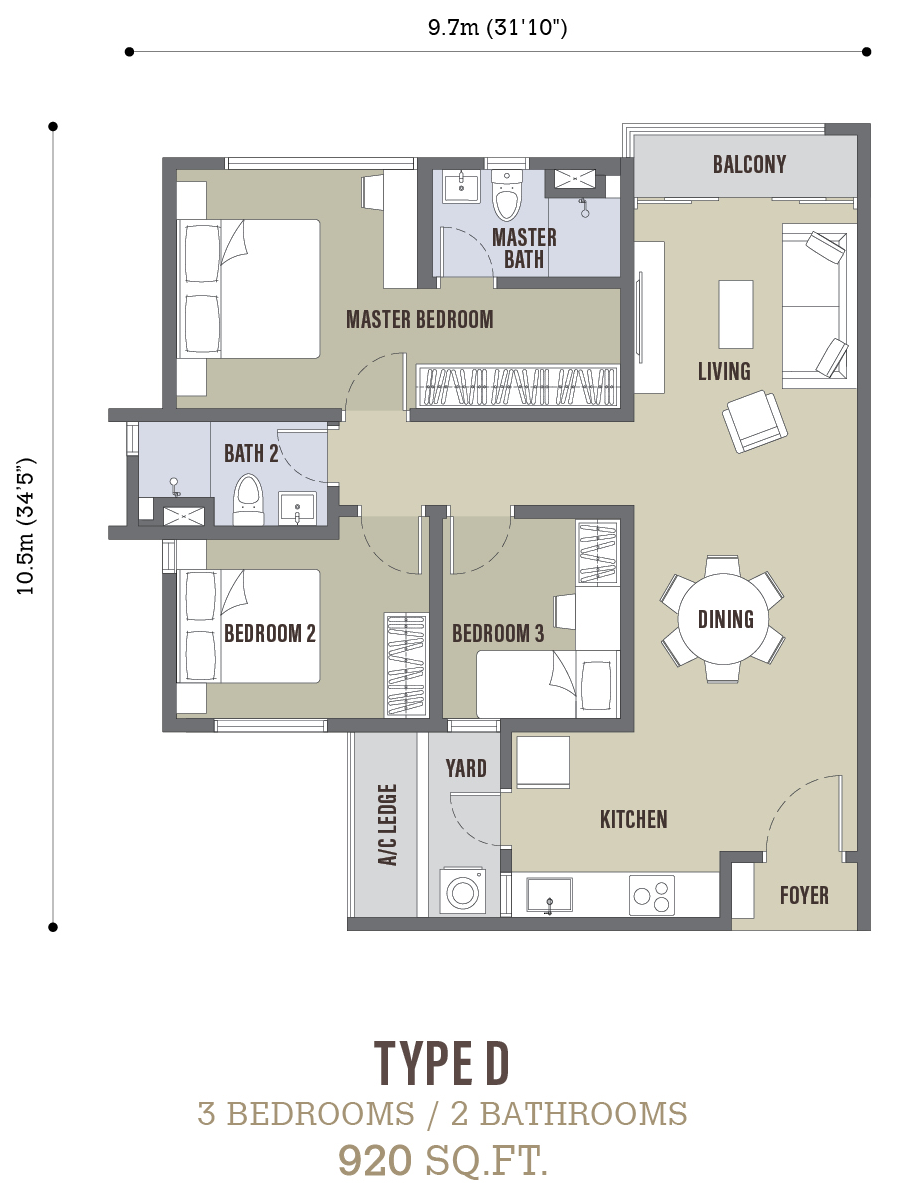

Type D
3 bedrooms, 2 bathrooms · 920 sq ft · With balcony
Master bedroom, Master bath, Living, Bath 2, Bedroom 2, Bedroom 3, Dining, Yard, Kitchen, Foyer, Balcony, A/C ledge

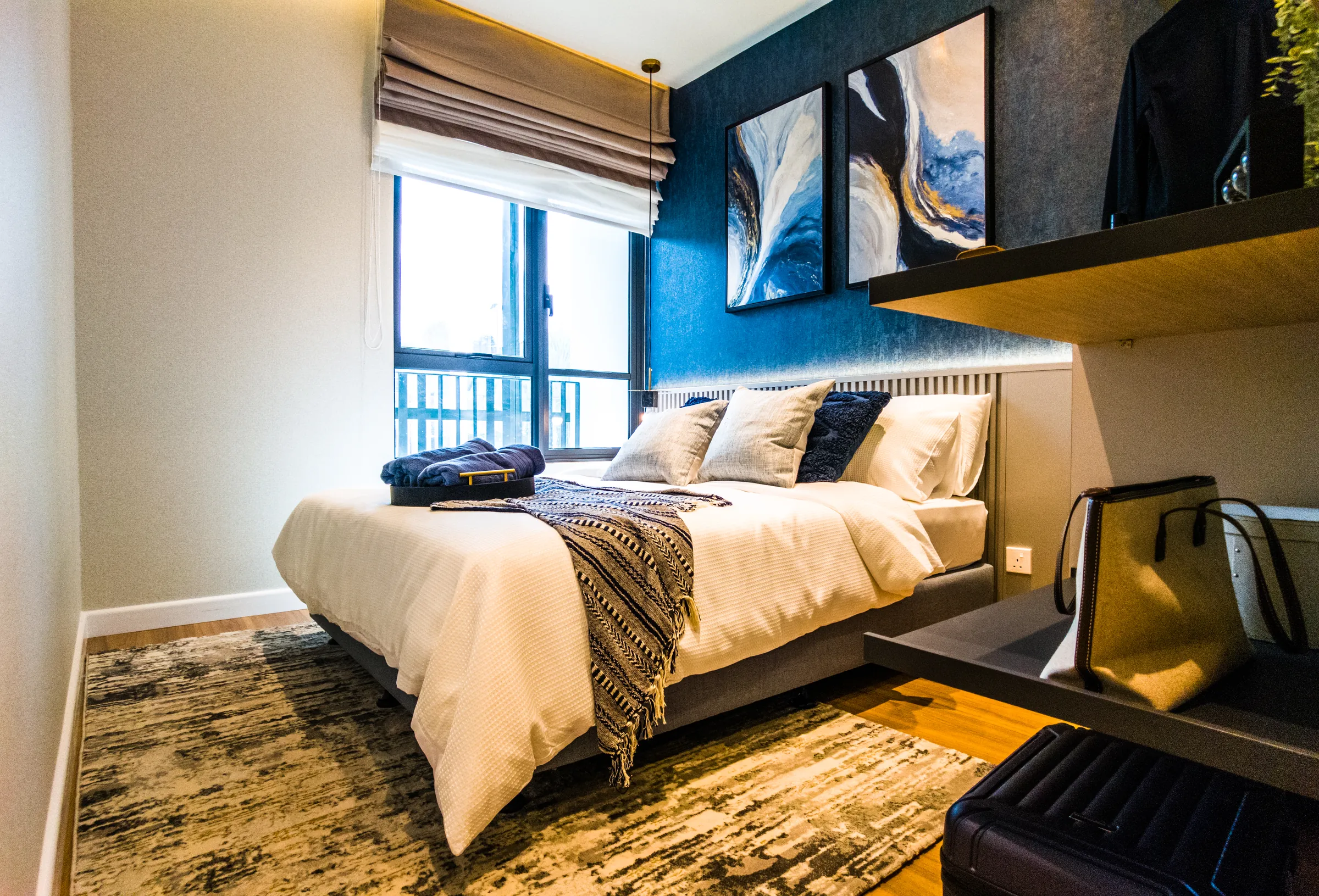

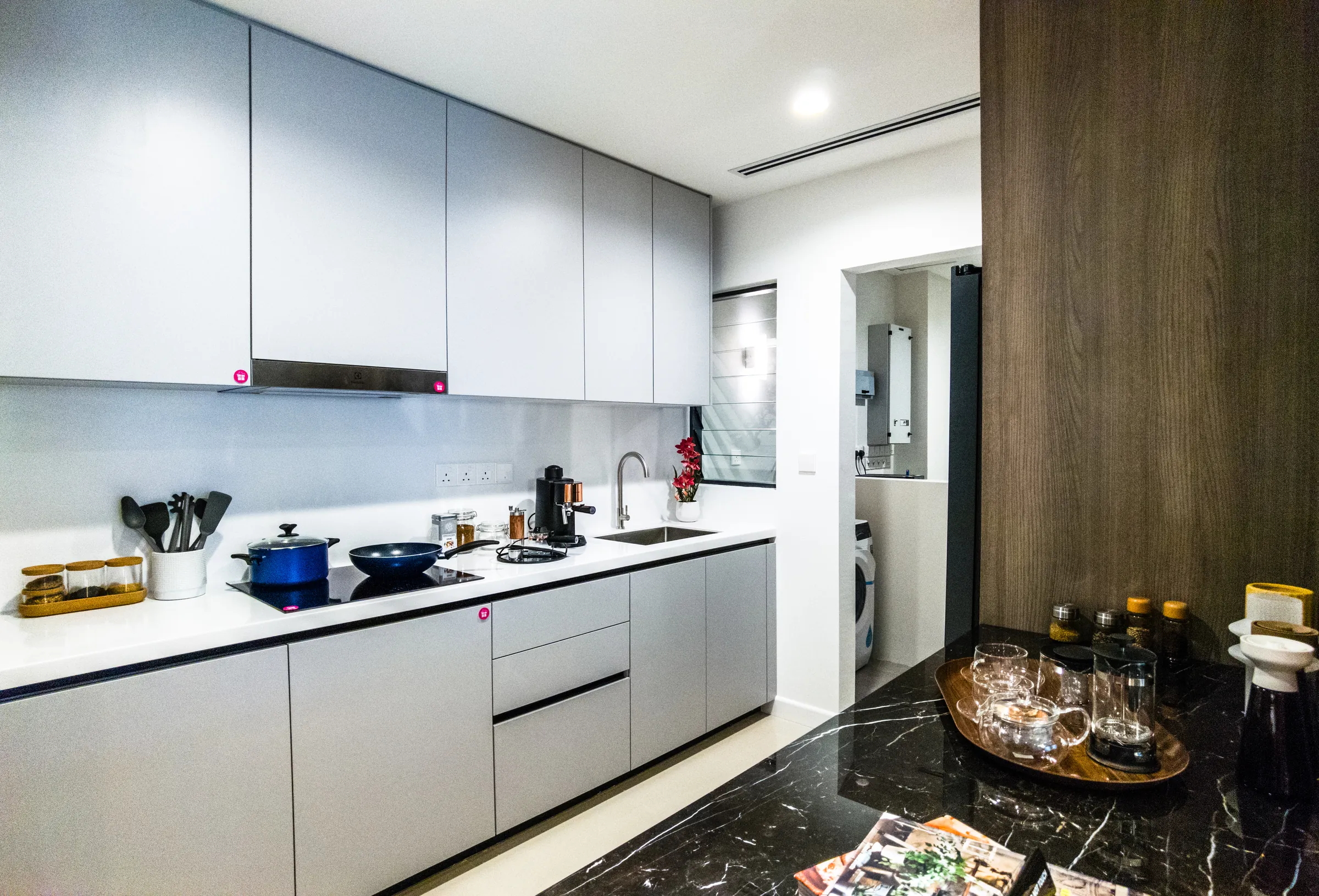

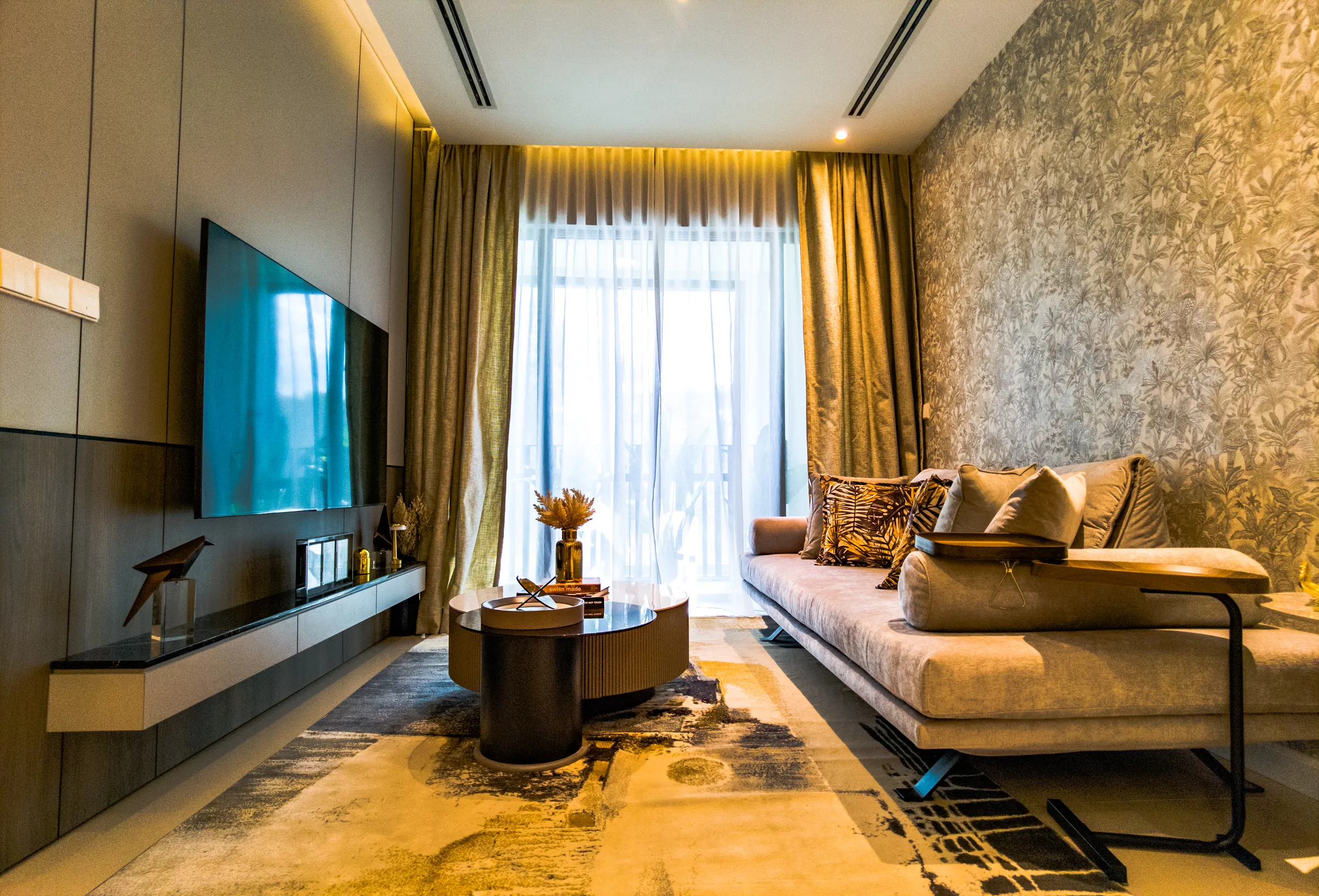

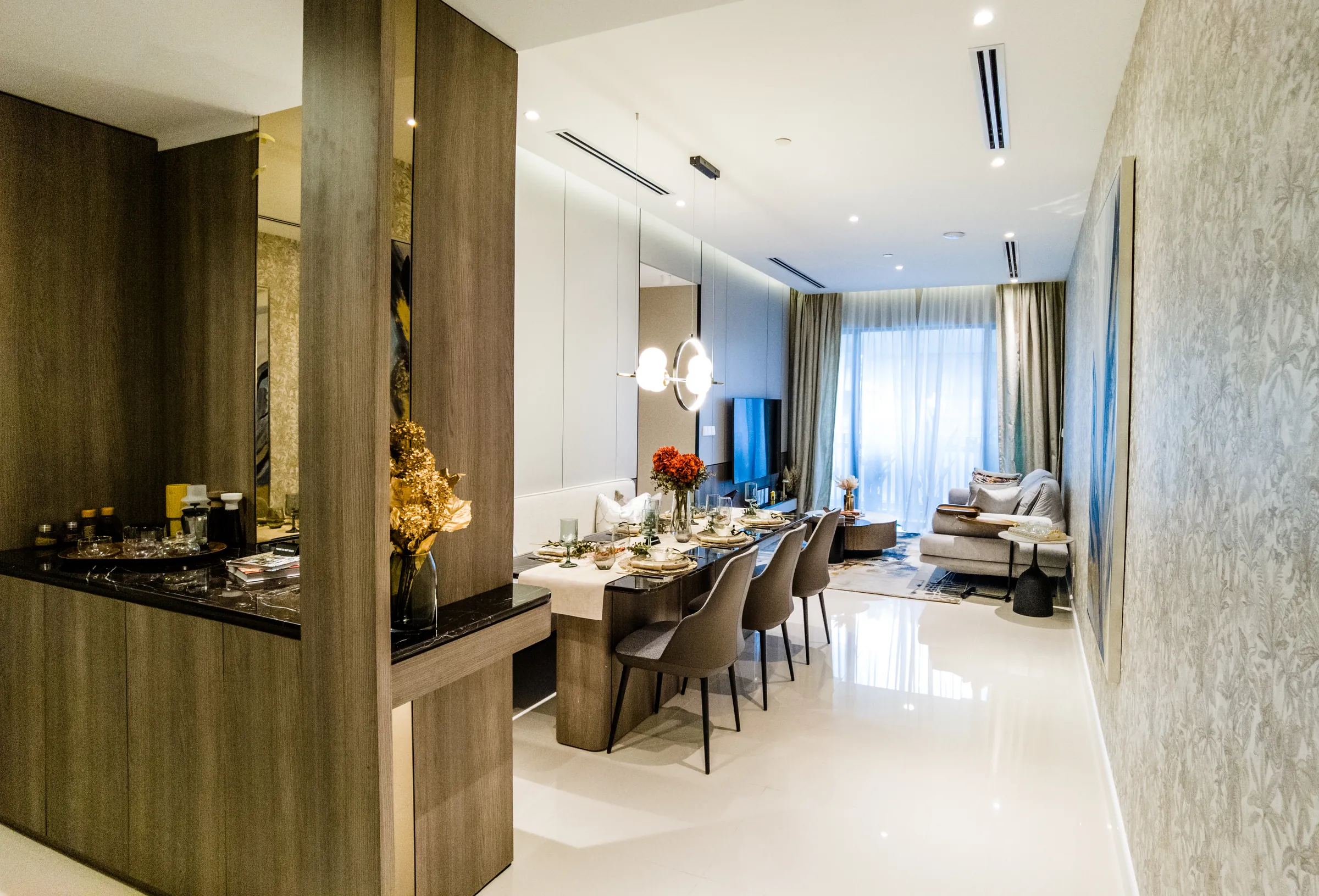

The Type C show unit, room by room
Type D interior photographs
There are no show-unit photographs for Type D. See the floor plan above for its rooms.
